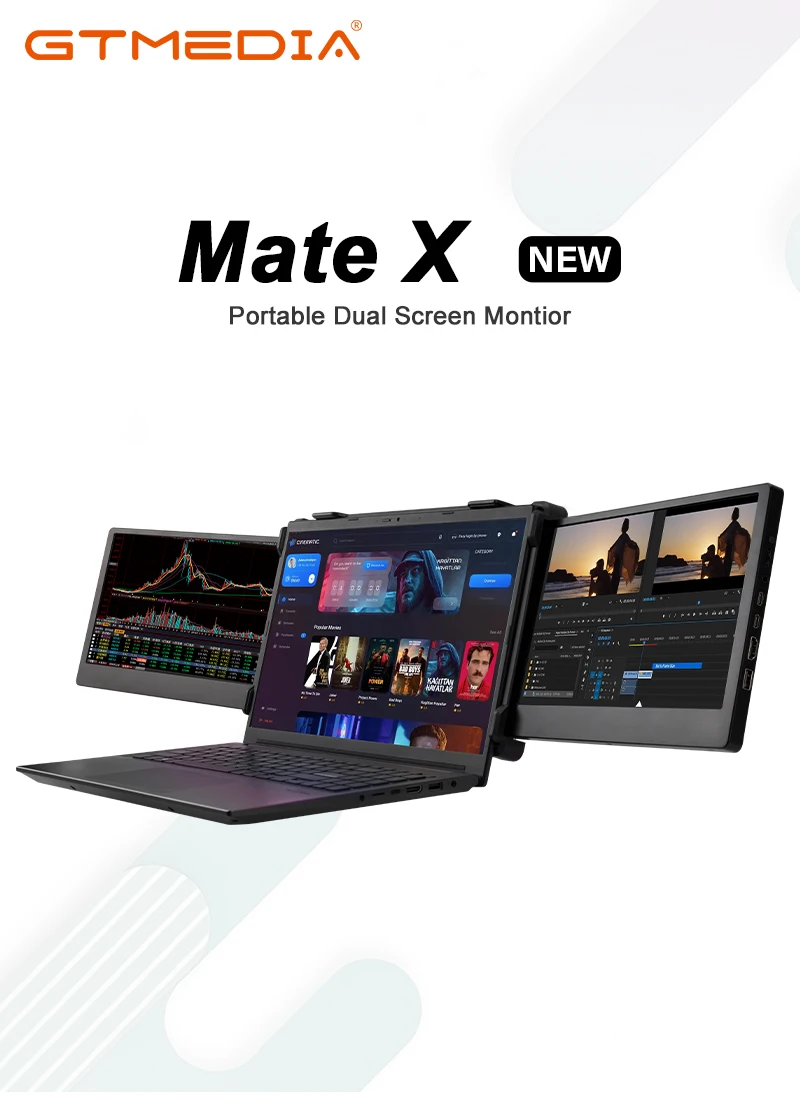

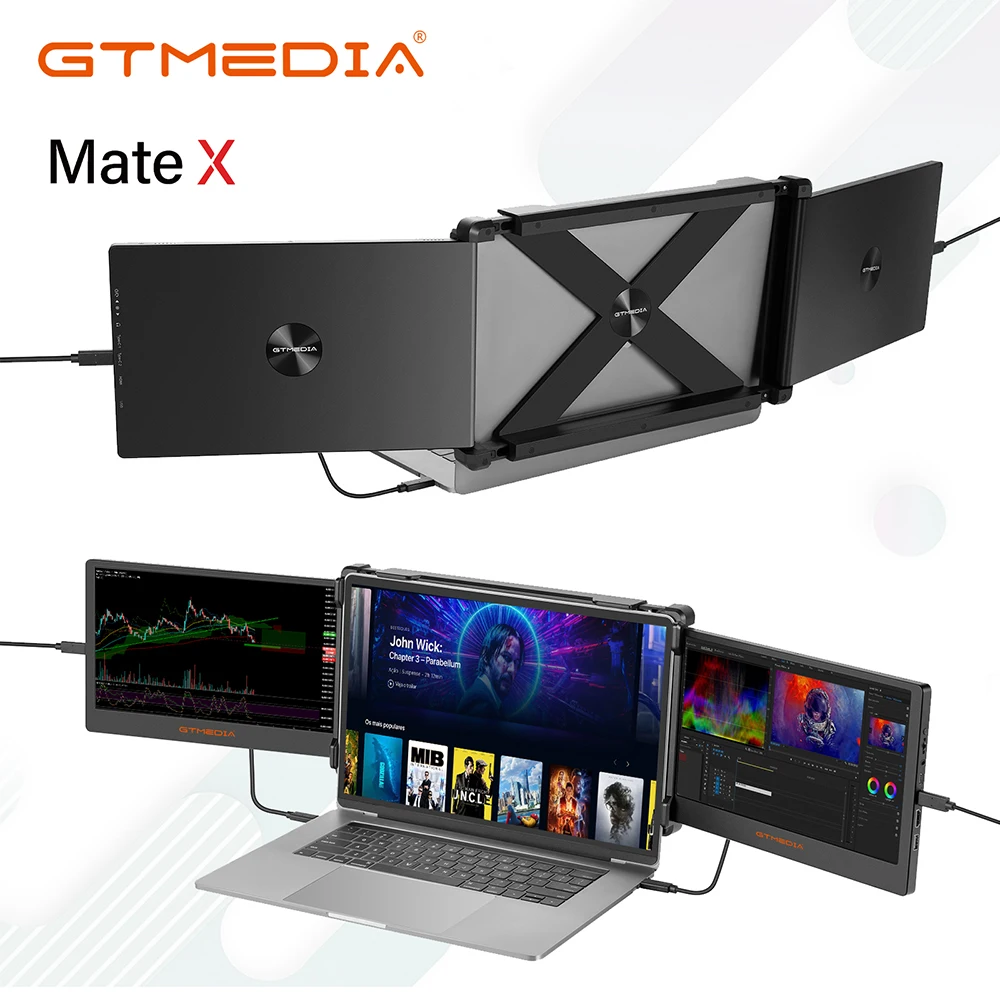

GTMEDIA MATE X PORTABLE MONITOR
(Portable Dual Screen Monitor 11.6-inch HDTV*1+ 2*TYPE-C+USB*1 ) |

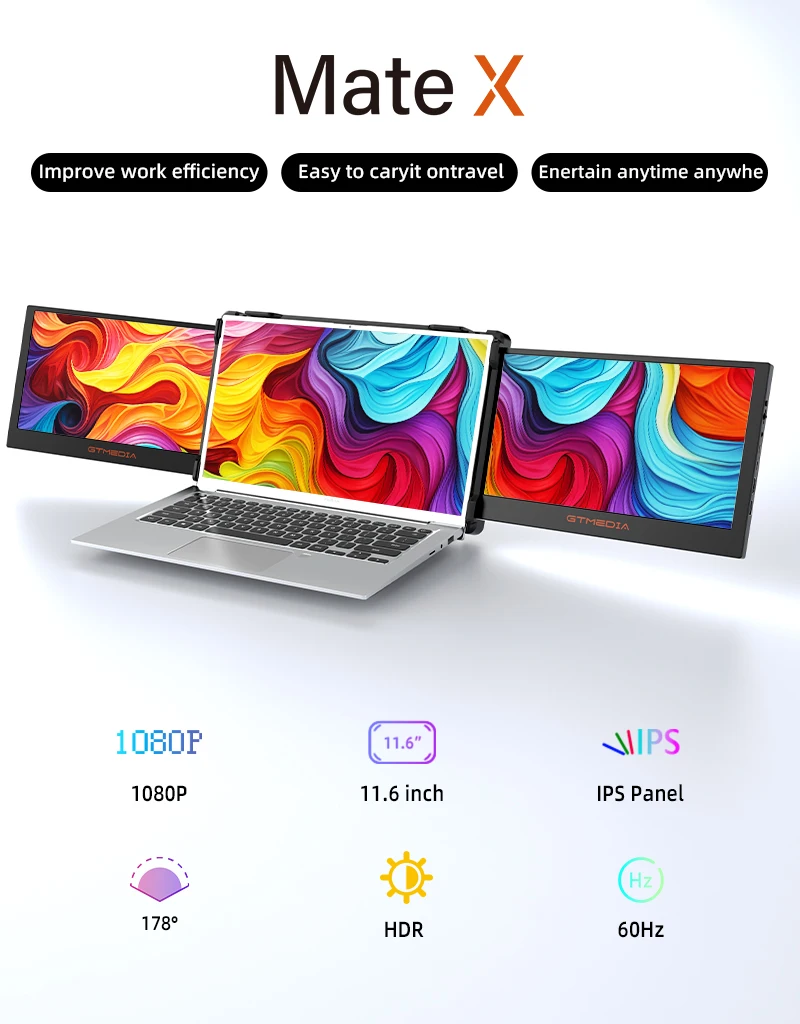

| Product overview | This portable dual-screen monitor adopts 11.6-inch IPS FHD high-definition screen,1920*1080 resolution,fine picture quality,real color performance,HDR technology, which can make the picture layered and display more details.
With the simultaneous display of three screens of the computer,office work,stock trading, design, film and television,and games can be carried out at the same time to improve work efficiency;
No need to install drivers,multi-system compatible, plug and play;Each screen only needs a Type-C cable (or a USB cable for power supply and an HDTV cable) to complete the connection |
| Product features | *17.3 inch FHD 1920*1080 IPS HD screen. |
| *Two Type-C full-featured ports, support DisplayPort Alt Mode |
| *HDTV |
| *USB 2.0 HOST |
| *Support multiple OSD languages |
| *Built-in dual speakers make the sound clearer and louder. |
| *Support dual-screen 195-degree rotation, applicable to a variety of usage scenarios. |
| *Support 13.1-17.3 inches laptop |
| *Support most smartphones/computers/laptops/SLR camera, etc. |

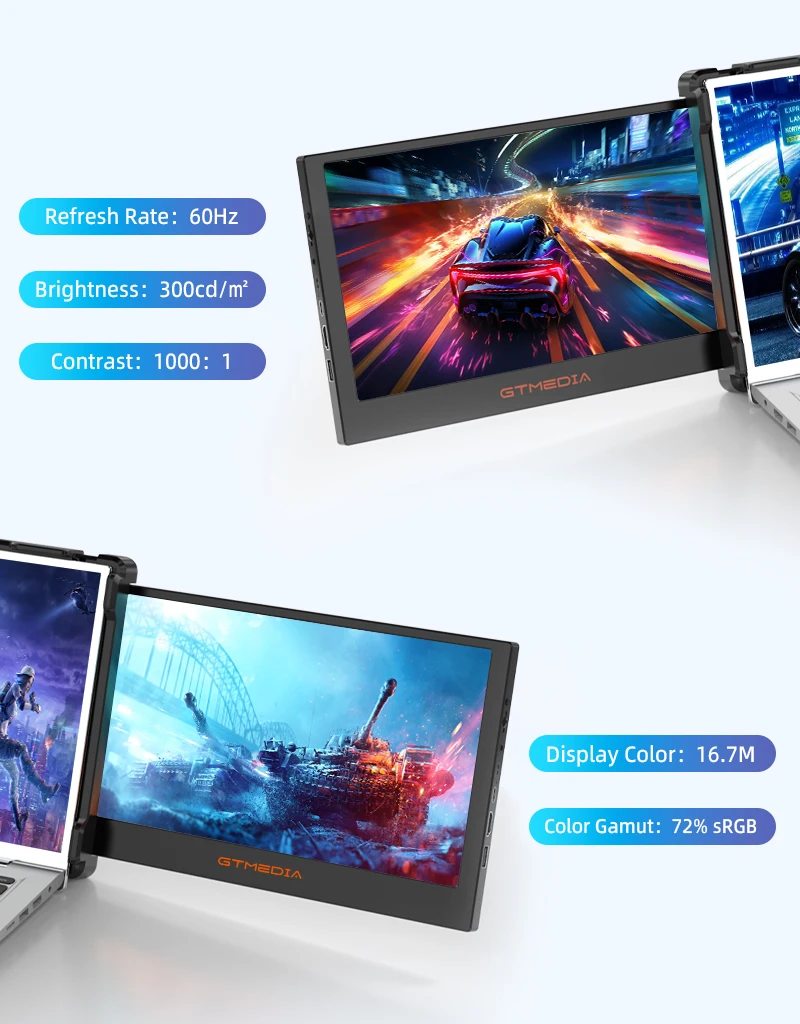

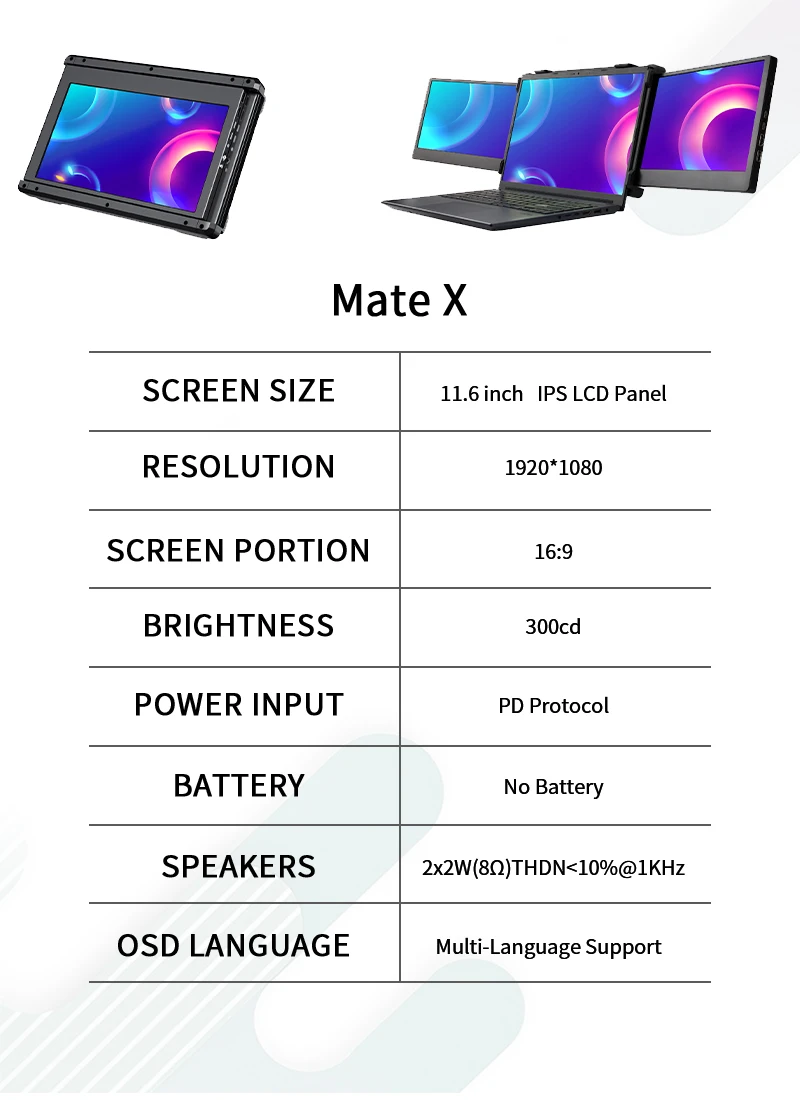

| Product specifications | Name | Portable Dual Screen Monitor | Size | 315*215*40mm(After folding) |
| Screen Size | 11.6-inch | Pixels | 16.7M |
| Screen Ratio | 16:9 | Pixel Pitch | 0.1335(H) x 0.1335 (V) |
| weight | 1.25KG | Resolution | 1920(H)*1080(V) |
| Packing Weight | 2.25KG | Refresh Rate | 60Hz |
| Screen Type | IPS | Brightness | 260cd/m |
| Touch | NO | Contrast | 1000:1 |
| Color Gamut | 72% sRGB | Color | 1.06B(8 bit) |
| Viewing Angle | 178° | Speaker | Speaker*2 |
| HDR | HDR10 | Input port | Type-C*2,HDTV,USB 2.0 |
| Response Time | 8ms | Output Port | 3.5mm Headphone hole |
| Adapter | 5V2.4A(optional)
Non standard configuration | | |

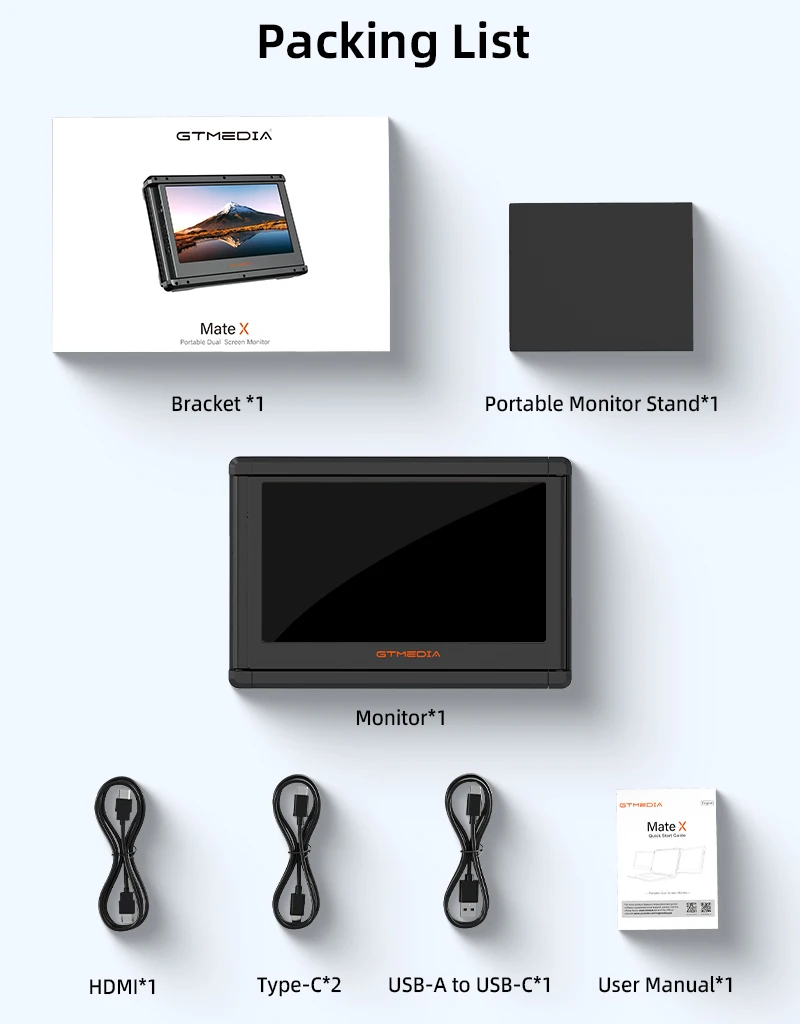

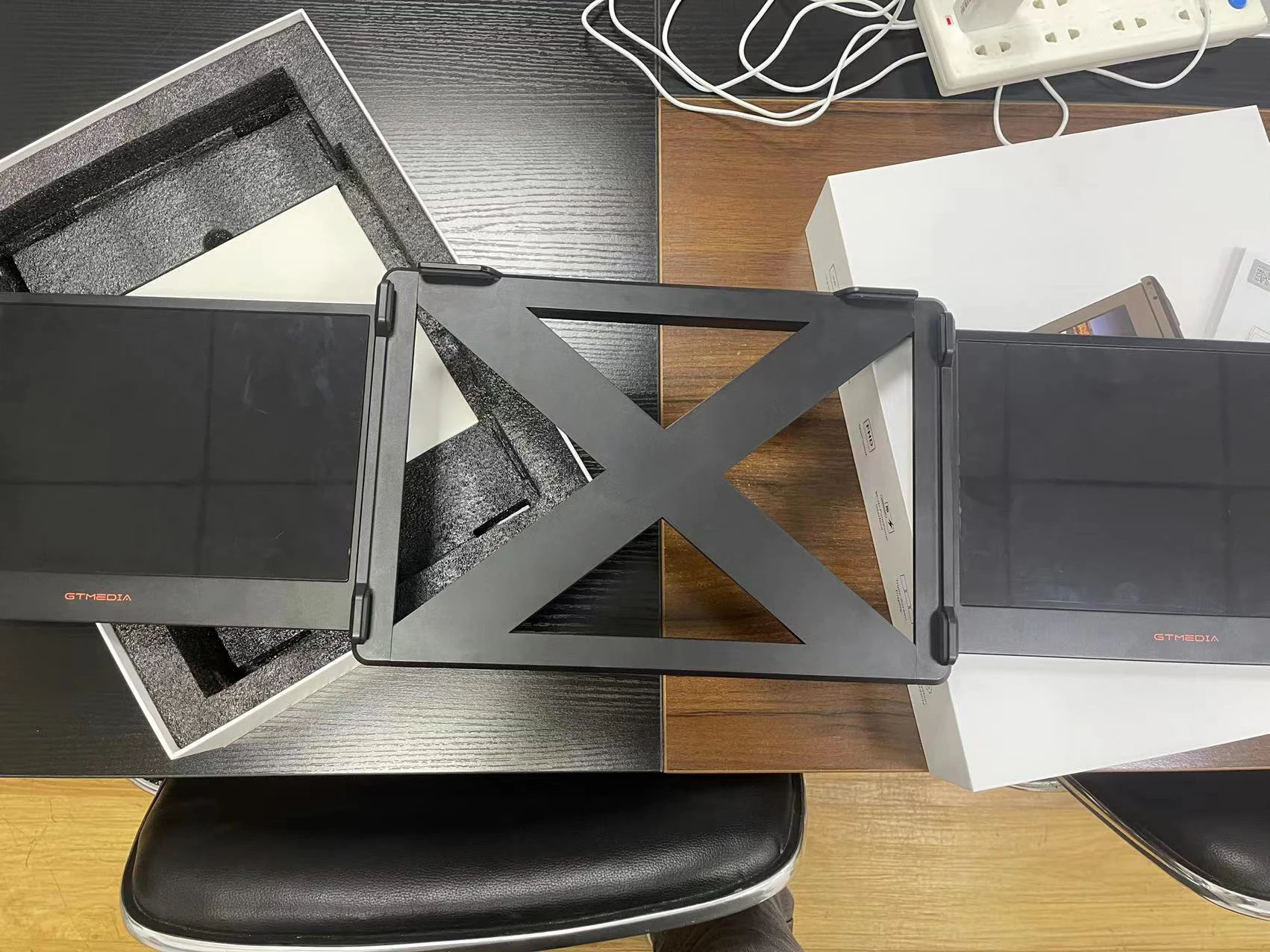

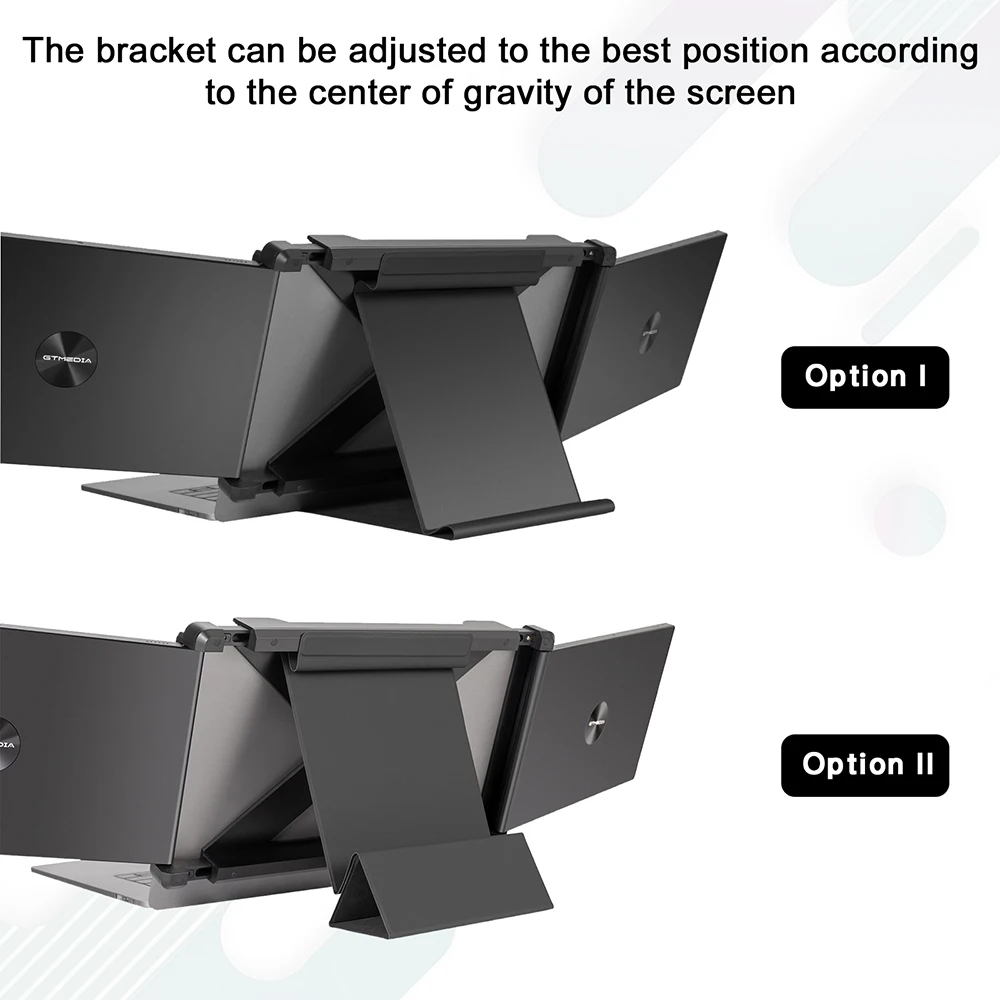

| Packing list | HDTV Cable,Type-C Cable*2,USB-A to USB-C Cable,Leather Case,Manual,Bracket |

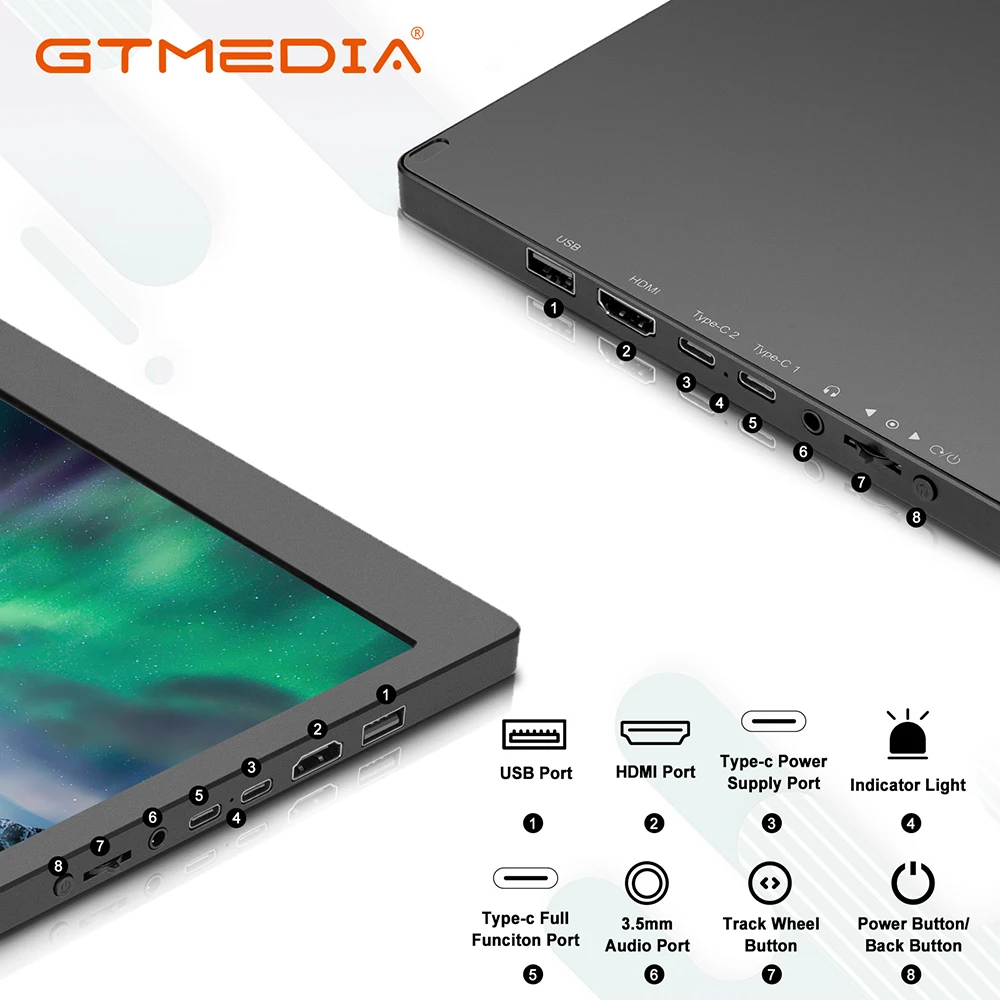

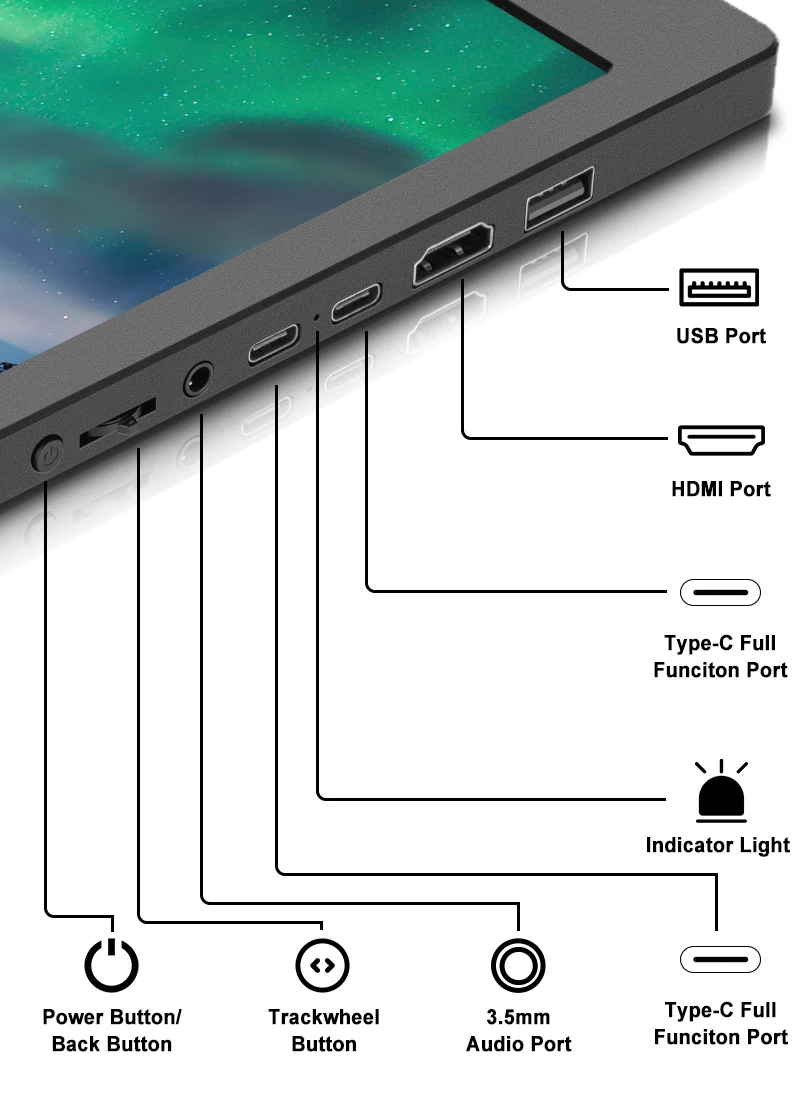

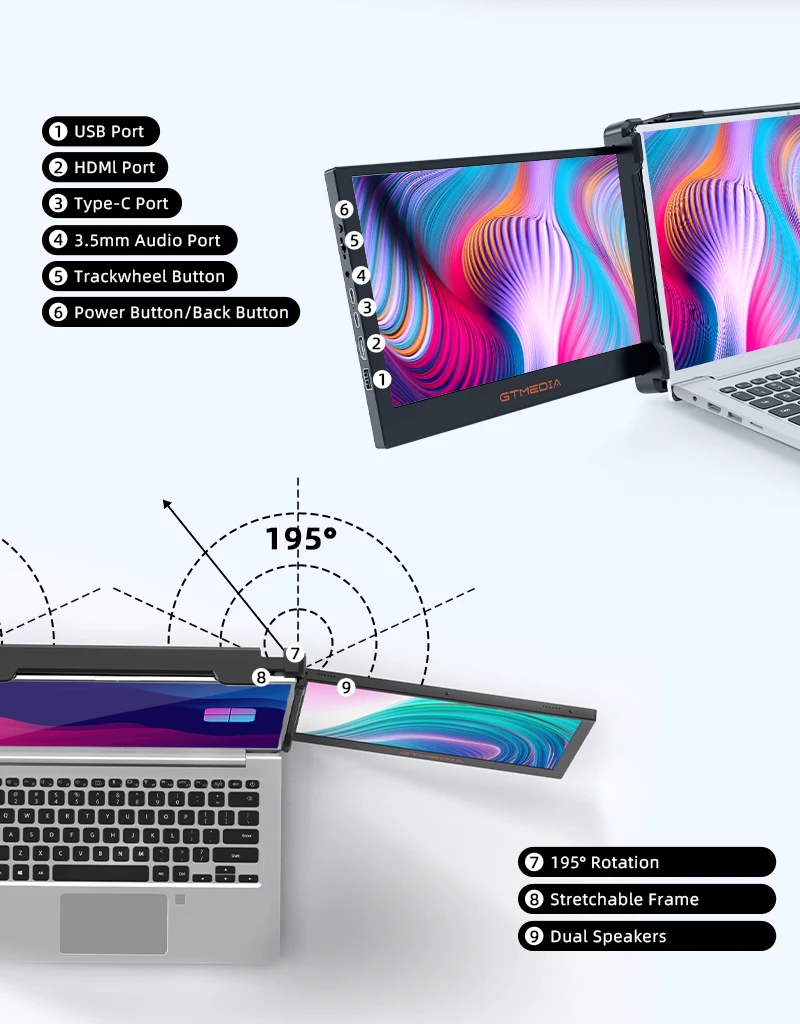

| Interface & Button introduction | Trackwheel Button | When there is no menu---Press down:show menu; Dial up: brightness menu; Dial down: volume menu
When the menu opens---Dial up: adjust up, Dial down: adjust down,Press down: OK |
| Power Button | Long press for 3 seconds:Turn on/off Power
Short press:Return |
| Type-C Port (Support PD Protocol) | Type-C 3.1 can be used for data transmission, audio and video output, and power supply |

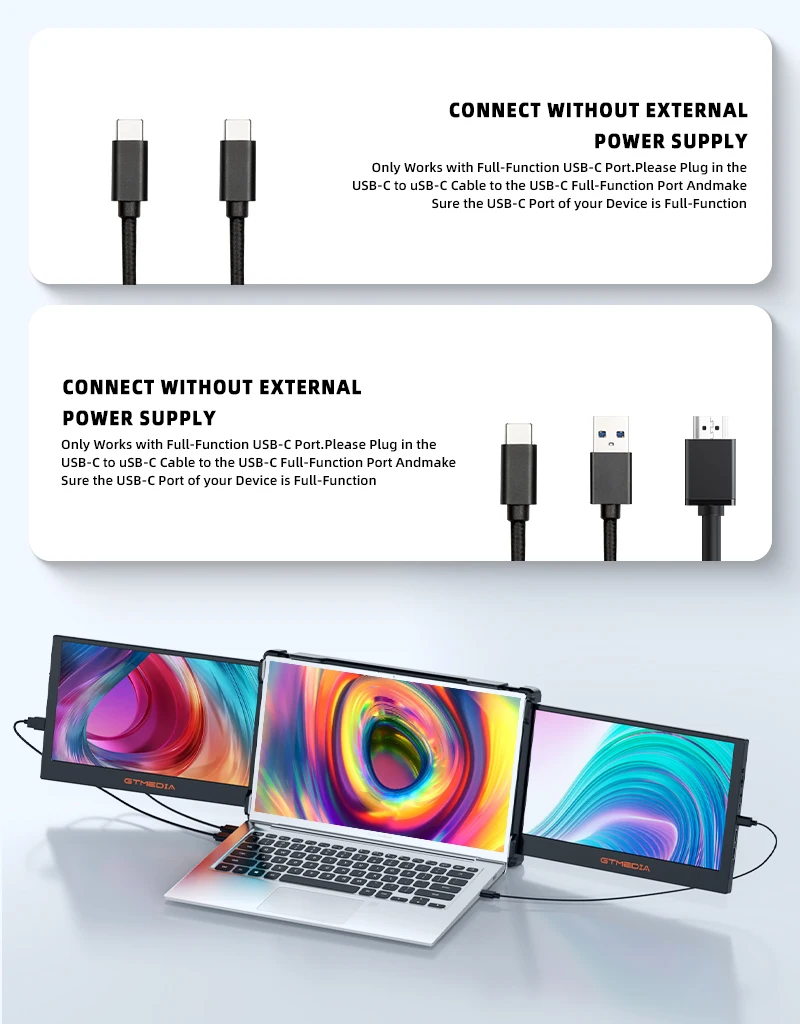

| Device connection instructions | Multi screen simultaneous display connection |
| Connect to a full-featured Type-C loptop |
| Connect to laptop or PC of HDTV port |
| Connect to full-featured Type-C mobile phone | Different mobile phone models may have different output power. If the phone is underpowered, an external power source is required to power the monitor. |
| Connected to devices of HDTV port |
| Connect to the Devices |
| Operational notes | 1. Both Type-C ports can be used as video input or power input, however, they cannot be used for the same function at the same time.
(For example: one Type-C interface is used for charging, and the other Type-C interface is used for video input). |
| 2.If the monitor needs to be connected to an external power source, please connect the power source first and then connect the video cable. This is important for high-quality and smooth video signal transmission. |
| 3.When no external power is connected to the laptop and monitor, the power saving mode will be turned on automatically, and the screen will be darker. Users can adjust the brightness according to their needs, and insufficient power will cause the display to turn off or display inconsistently. |
